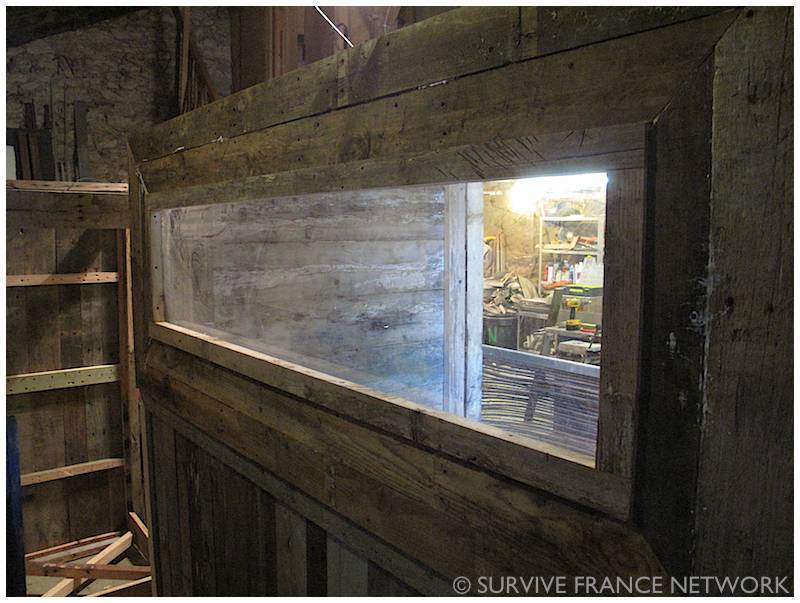

Here I've used a piece of Plexiglass; this will act as a window on the back wall.

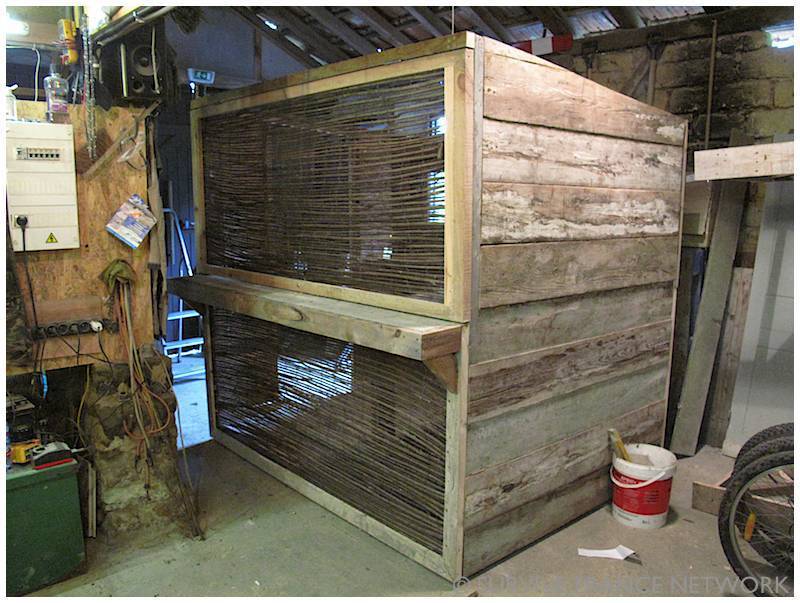

Using clamps to hold the left hand wall in place, I can get started on the door end.
Using these lightweight natural materials will make it easier to transport.

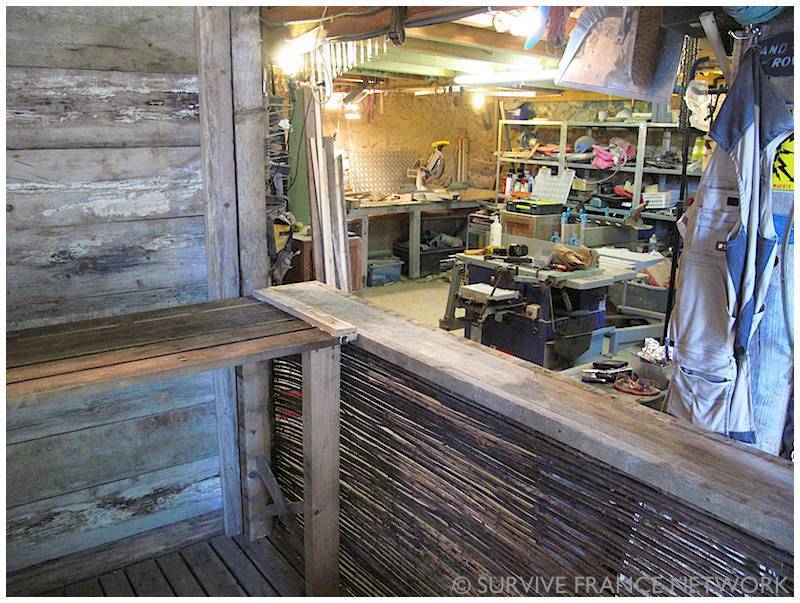

I'm going to need somewhere to put my plancha grill so I've made a simple pallet table. Again, it is free standing so that it can be transported separately.

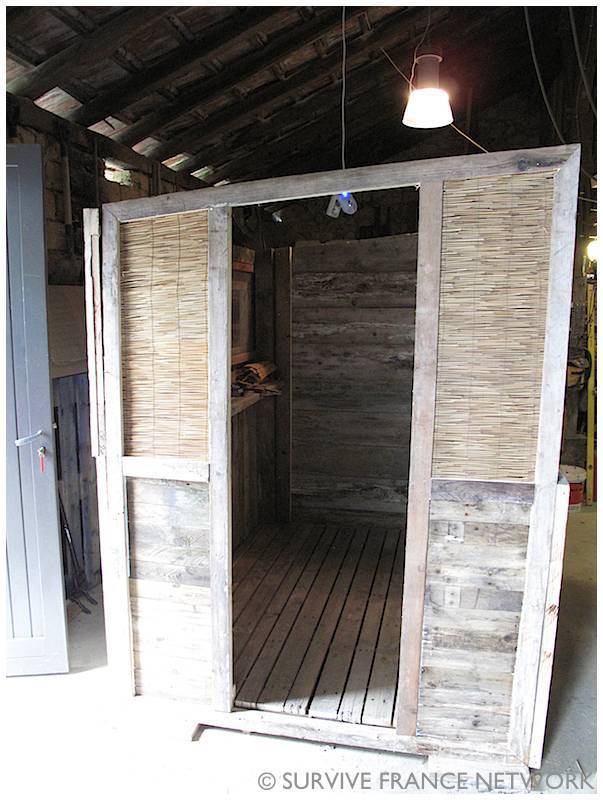

Just the roof section to do and it's ready to be moved.

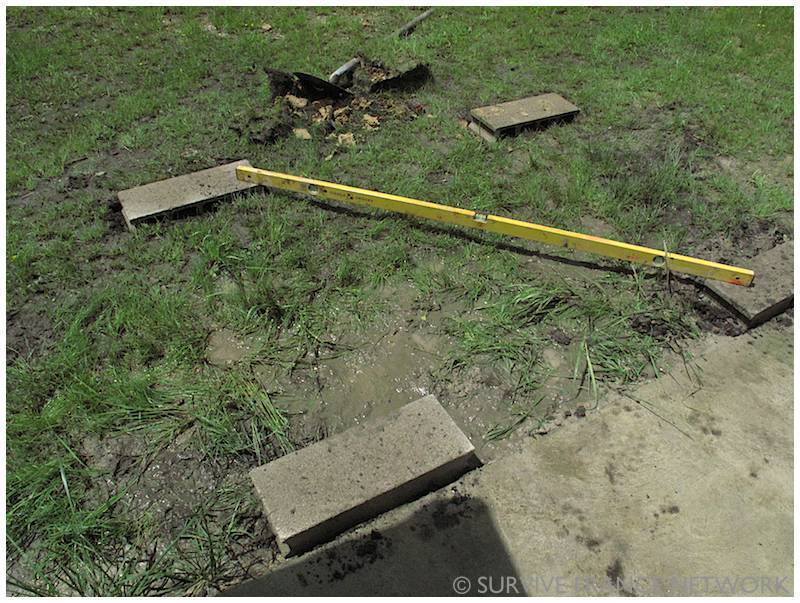

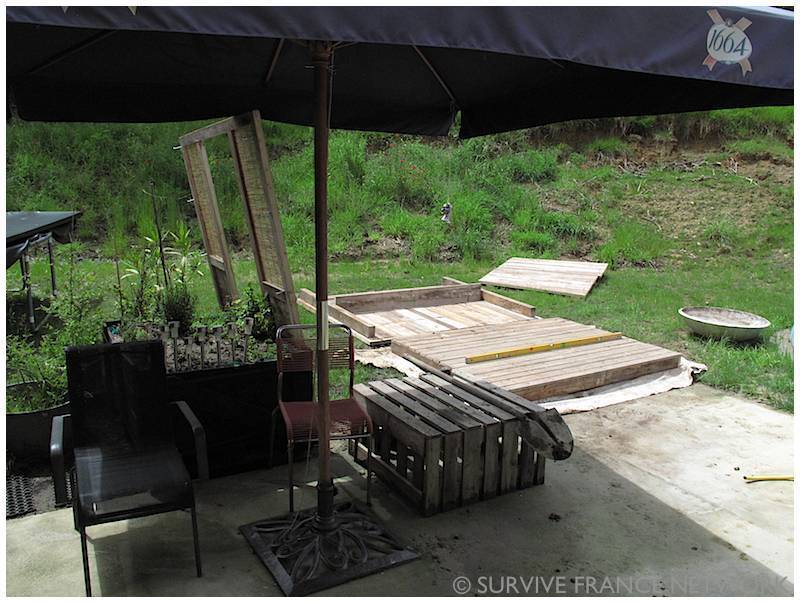

Rather than pace it directly on to the ground, I am going to put it on blocks; this will ensure that it's level and also prevent it from drawing up water from the soil and thus, eventually rotting.

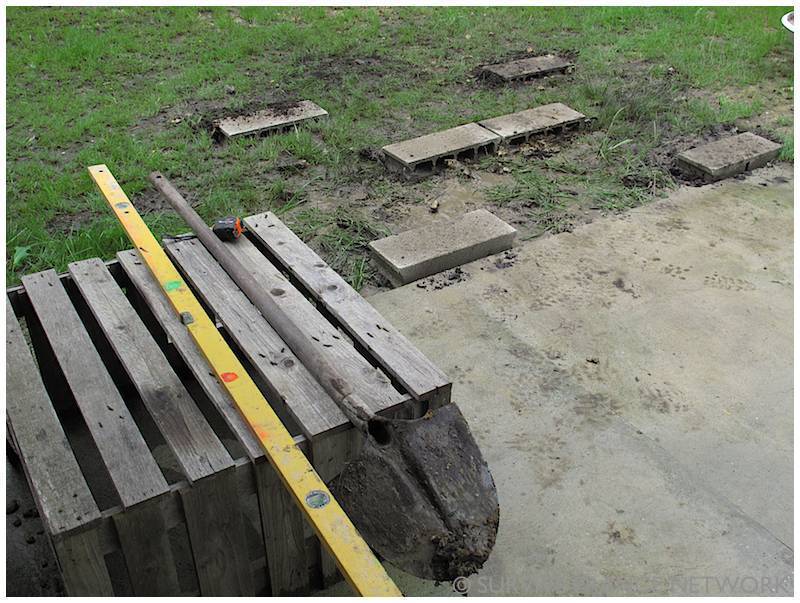

All perfectly level with two blocks in the center to support the joists.

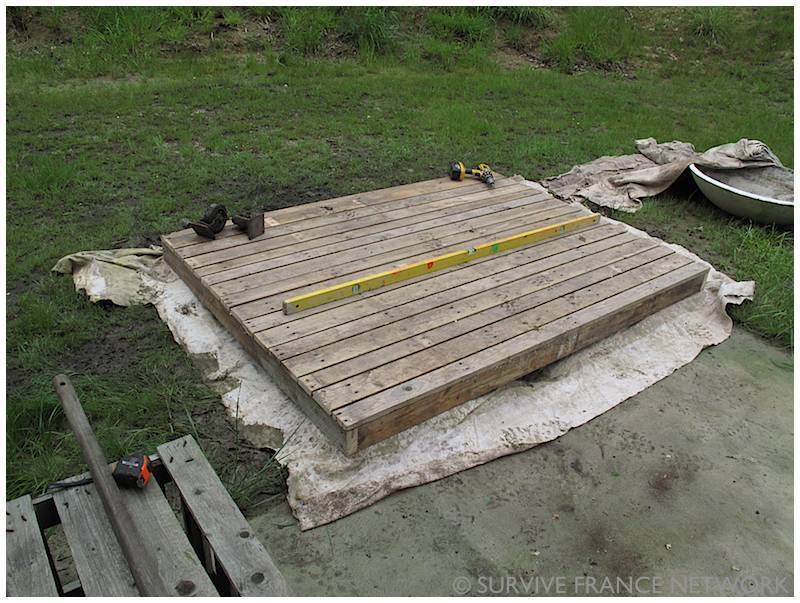

Before the base goes down, I've cut a piece of geo-textile to stop grass and weeds growing up through the gaps in the boards. You could use old carpet or cardboard too.
Now is the time to call for some help to lift the sections into place. Only one of the walls and the floor are particularly heavy. I called my mate but he was busy so, as I didn't want to wait (for it to start raining again!) I screwed some heavy duty castors to each wall in turn and wheeled them over from the workshop.

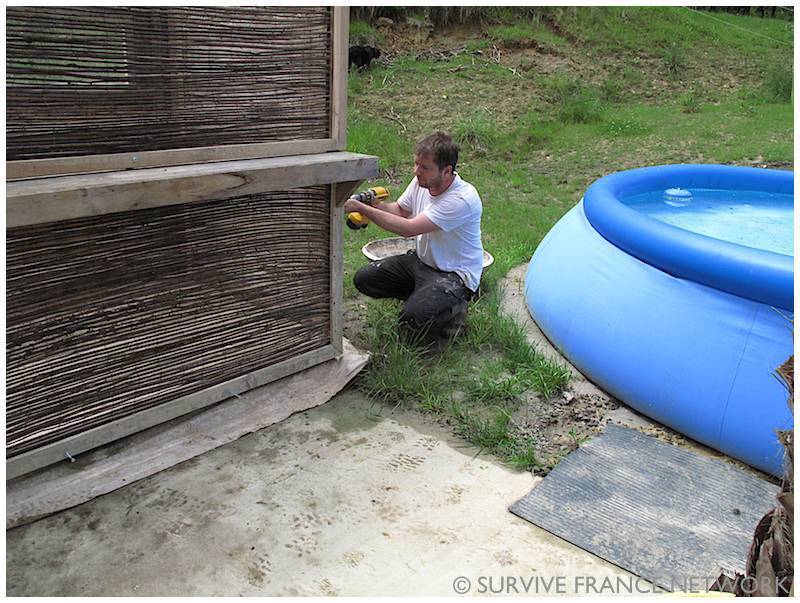

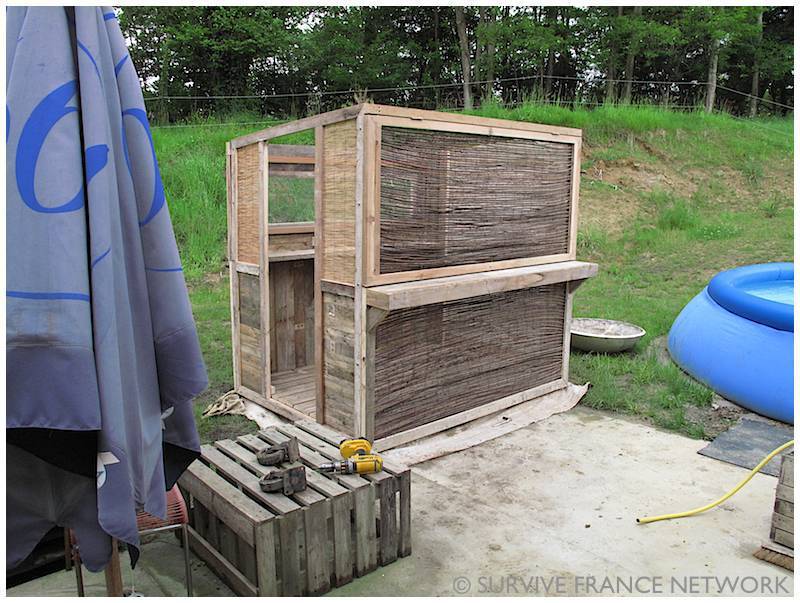

Everything is in place and now it's just a case of inserting five large hexagon headed screws in to each of the corners.
Ready for the roof to go on.

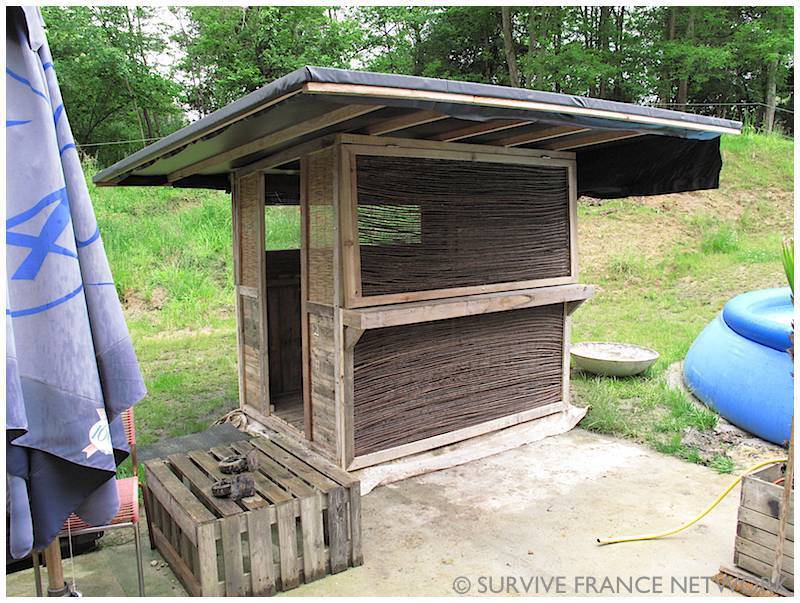

The roof is made in a similar manner to the floor and I've stretched some thick rubber over the frame. It's quite lightweight too.

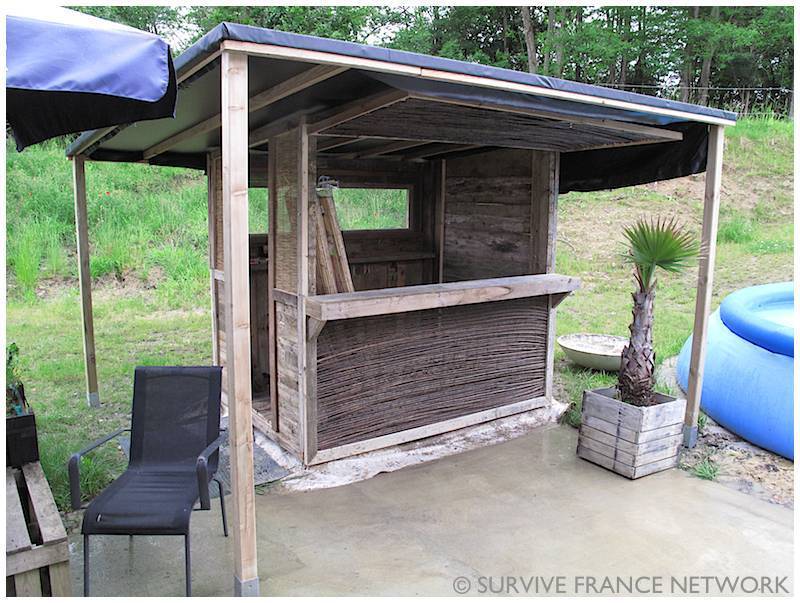

It looked a bit weird with the overhang like that so I placed a post at each corner to support the roof and improve the way it looks (and also stop it blowing away!) The posts are fixed to the ground and screwed to the roof frame which is also screwed to the front and back walls with 100mm screws. The front section is hinged and held in place with a catch when open.

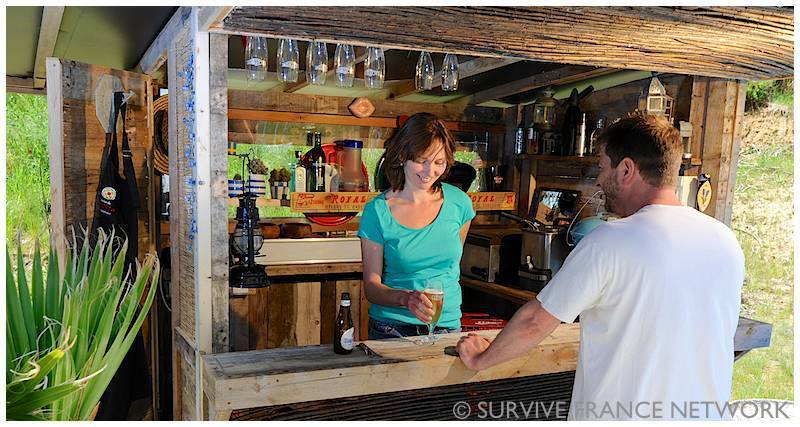

That's it, all you need to do now is equip your beach bar and it's ready for opening time! Cheers!
If you have any questions on how any of this was done, please ask me in the comments!
